Sonia
Hear clearly, wherever you are.
Sonia
Hear clearly, wherever you are.
Bring everyone into the discussion.
The Problem
In larger collaboration spaces such as conference rooms and classrooms, soundbars and speakers near the display won’t adequately cover the space. Room users closer to the display will endure an unpleasant volume level while those at the back may not hear at all.
The Solution
Distributed speakers, such as the Sonia Series, enable you to locate speakers evenly across the space to cover a smaller area with each device — making overall volume lower, more comfortable, and removing echos and booms. Now, those at the front and back of the room can hear the same — with comfort.
Sonia gives everyone the ability to deploy great audio.
Unlike traditional speakers, Sonia is based entirely on CatX cable — enabling quick, easy installation with no messy termination or bulky copper wire. It enables everyone to deploy great audio in their space, without worrying about their setup.
Sonia gives everyone the ability to deploy great audio.
Unlike traditional speakers, Sonia is based entirely on CatX cable — enabling quick, easy installation with no messy termination or bulky copper wire. It enables everyone to deploy great audio in their space, without worrying about their setup.
Keep your room clear.

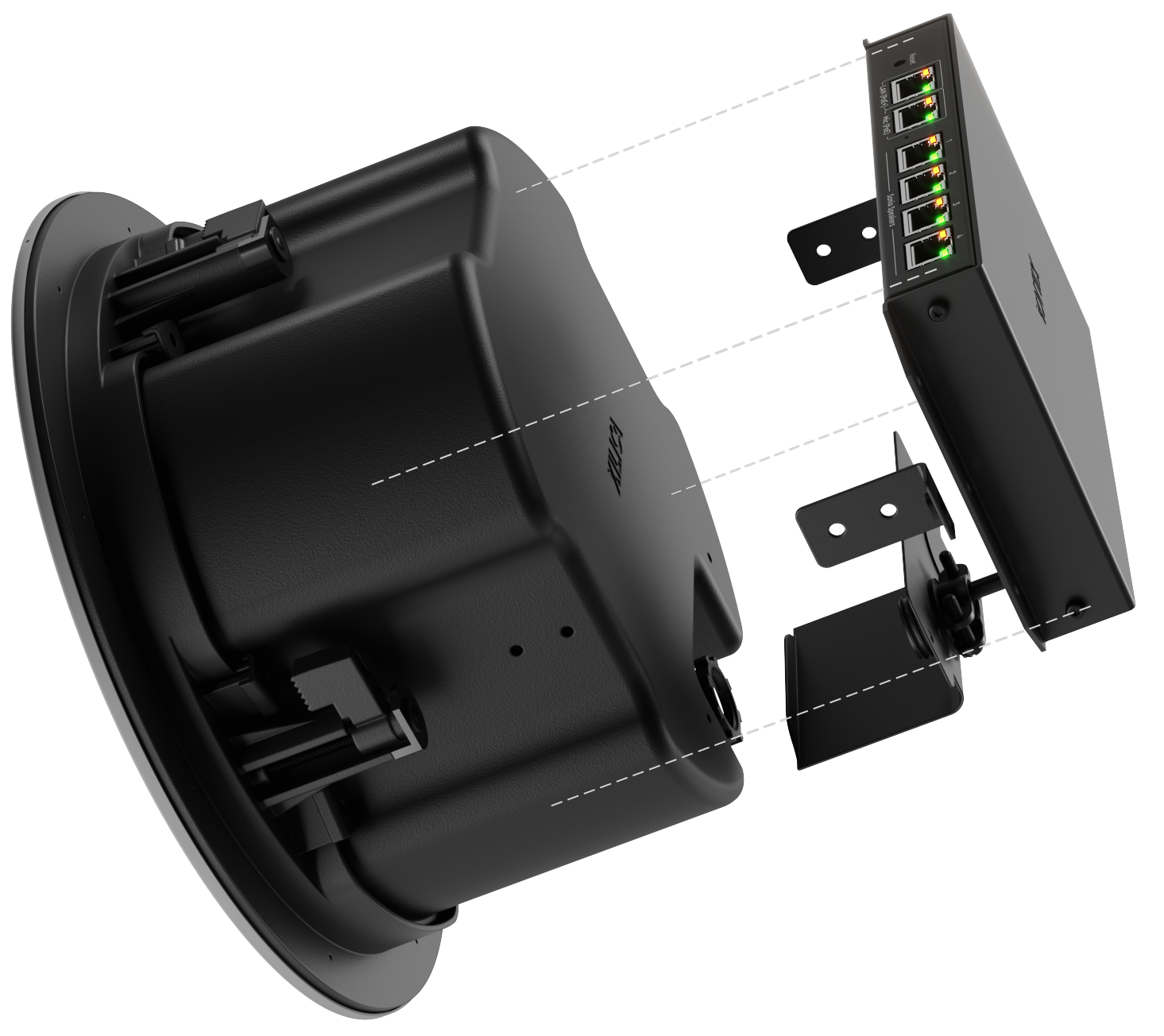

Sonia Amp mounts directly onto Sonia C5 for invisible, in-ceiling installation. The entire configuration eliminates in-room amplifier racks and hefty, expensive copper cable — and, Sonia C5 includes double-stepped, long travel mount ears for blind installation from below the ceiling.
Simply connected.
Sonia Amp is designed for the modern collaboration space and includes a built-in network switch, enabling you to power an external ceiling microphone array direct from the device. That’s just one CatX drop to the ceiling for your entire AV system.
Simply connected.
Sonia Amp is designed for the modern collaboration space and includes a built-in network switch, enabling you to power an external ceiling microphone array direct from the device. That’s just one CatX drop to the ceiling for your entire AV system.
Don’t worry about compatibility.
Sonia Amp and Sonia C5 were designed to work together with just a click. And, pre-built templates for Sonia systems are available in Xilica Designer — so room deployment really can be turn-key.
Sonia C5 –
Exceptional audio quality.
Sonia C5 incorporates a soft, silk-domed tweeter for smooth tonality and a 5.25” low-frequency transducer to give the ideal size-to-sound ratio for modern meeting spaces. Sonia C5’s wide, even dispersion pattern enables fewer speakers in large spaces.
Features of Sonia C5
Power up to eight Sonia C5 speakers from a single Sonia Amp, linking them in pairs for greater coverage with less cable.
Sonia is optimized for highly-intelligible speech with VoiceMatch™ in each Xilica processor.
StudioX™-designed grille that is magnetically attached without tools, and paintable in any color with removable logo.
Sonia C5 Specifications
-
Input/Output
Audio in: RJ45, CatX, amplified audio over Category cable;
Audio out: RJ45, CatX, amplified audio over Category cable (link) -
Rated Power
30W at eight (8) Ohms
-
Operating Temperature
32-104⁰F (0-40⁰C)
-
Ethernet
(2) RJ45 with Link and Speed indicators
-
Fault Sensing
Yes; to Sonia Amp
-
VoiceMatch Support
Yes; via Sonia Amp/Solaro Series
Sonia Amp – centralized control.
Running like a standard IT appliance, Sonia Amp enables centralized monitoring, management and control without the cost of individually-addressable speakers.
With fault sensing between Sonia C5 speakers and the Sonia Amp, and dedicated VoiceMatch™ settings in each Xilica processor, end-users benefit from the same core functionality as an IP speaker without the expense.
Sonia Amp – centralized control.
Running like a standard IT appliance, Sonia Amp enables centralized monitoring, management and control without the cost of individually-addressable speakers.
With fault sensing between Sonia C5 speakers and the Sonia Amp, and dedicated VoiceMatch™ settings in each Xilica processor, end-users benefit from the same core functionality as an IP speaker without the expense.
Features of Sonia Amp
Single CatX for power and data, with Sonia Amp supporting Dante™ and PoE+.
Enabling invisible installation in drop ceilings and air-handling spaces with mounting directly onto Sonia C5.
Integrated network switch with PoE, connecting external ceiling microphones with just one cable.
Sonia Amp Specifications
-
Power-over-Ethernet
PoE+ to IEEE 802.3at, Class 4
-
Power Consumption
30W maximum
-
Power Output
Four (4) channel, 15W/channel maximum (without Mic port in use);
Four (4) channel, 6W/channel maximum (with Mic port in use) -
Microphone Port Power
PoE to IEEE 802.3af, Class 0;
15W maximum, 10W typical -
Operating Temperature
32-104⁰F (0-40⁰C)
-
Cooling
Convection cooling, no fan
-
Humidity
0-95% relative humidity, non-condensing
-
Connectivity
LAN: (1) RJ45, PoE+ powered;
Microphone: (1) RJ45, PoE power for microphone array, pass-through network to LAN port;
Speaker(s): (4) RJ45, amplified audio out to Sonia C5 -
Audio Networking
Dante™ with AES67-compliance, four (4) output channels
-
Amplifier Type
Class D
-
Amplifier Power
Single channel: 15W;
Dual channel: 7W;
Four channel: 3W -
Frequency Response (20Hz-20kHz)
+/- 1dB
-
Sample Rate
48kHz
-
Dynamic Range (20Hz-20kHz BW)
>90dB
-
THD+N (20Hz to 22kHz)
<0.3%
-
Intermodulation Distortion (SMPTE)
<0.3%
-
Crosstalk (Channel-to-Channel at 1kHz)
<-90dB
-
Controls, Service & Indicators
Reset: Momentary tactile button;
Status: RGB LED indicator;
LAN (PoE+)/Mic (PoE) RJ45 indicators: Green (left) – Link Status, On = Link Established; Off = No Link; Green (right) – Blink on data activity;
Sonia C5 RJ45 indicators: One (1) Sonia C5 connected to RJ45 (8 Ohm load detected) – Left green light (on), right green light (on); Two (2) Sonia C5s connected to RJ45 (4 Ohm load detected) – Left green light (on), right green light (off)
- CatX from IDF Closet, Dante/PoE+
- CatX to Sonia C5, Powered Audio over Ethernet
- CatX to/from microphone, Dante/PoE
Documentation, software and support is available on the Xilica Support Hub.
